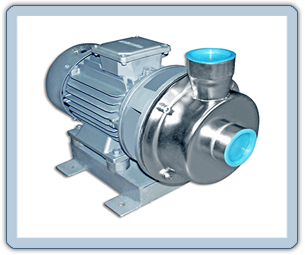

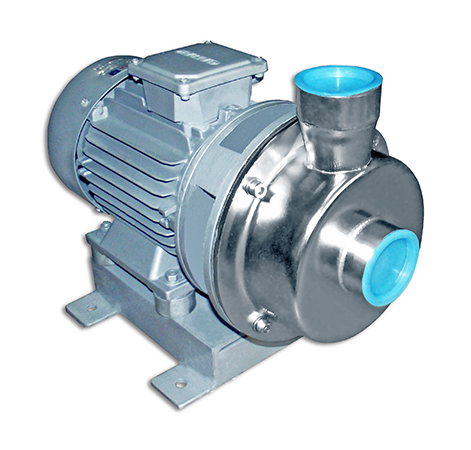

İdeal Pompa Paslanmaz Pompalar PPT2"

GENERAL SPECIFICATIONS

• Inlet and outlet: 2”
• The production of entire pump is stainless steel
  ( AISI 304 or AISI 316 ).
• End suction monoblock centrifugal pump with open or closed
  impeller.
• Pump shaft bearing is covered with the electric motor bearings.
• The pump rotation is clockwise when you look from behind of   the pump.
• The suction is 7 meters.

PERFORMANCE CURVE	PUMP DIMENSIONS

APPLICATION FIELDS
• Food industry. • Textile industry. • Circulation. • Boosters. • Comercial dishwashers. • Industrial washing machines. • Transfer of sea water. • Agricultural fertilizer plants • Pressurized water supply. • Solar systems.

MODEL	POWER	HEAD MAX.	CAPACITY MAX.	WATER PROOFING	SHAFT	IMPELLER	PUMP BODY	INLET OUTLET	OPERATING TEMP.
MODEL	(Kw)	(m/h)	(m³/h)	WATER PROOFING	SHAFT	IMPELLER	PUMP BODY	(inch)	OPERATING TEMP.
PPT2" 0.75	0.55	10	16	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C
PPT2" 1	0.75	17	23	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C
PPT2" 1.5	1.1	18	28	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C
PPT2" 2	1.5	22	31	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C
PPT2" 3	2.2	27	33	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C
PPT2" 4	3	28	38	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C
PPT2" 5.5	4	30	42	mechanical seal	304 stainless	304 stainless	304 stainless	2”	0°C +100°C

Options:
• Pump body: AISI 316 stainless steel
• Impeller: AISI 316 stainless steel
• Shaft: AISI 316 stainless steel
